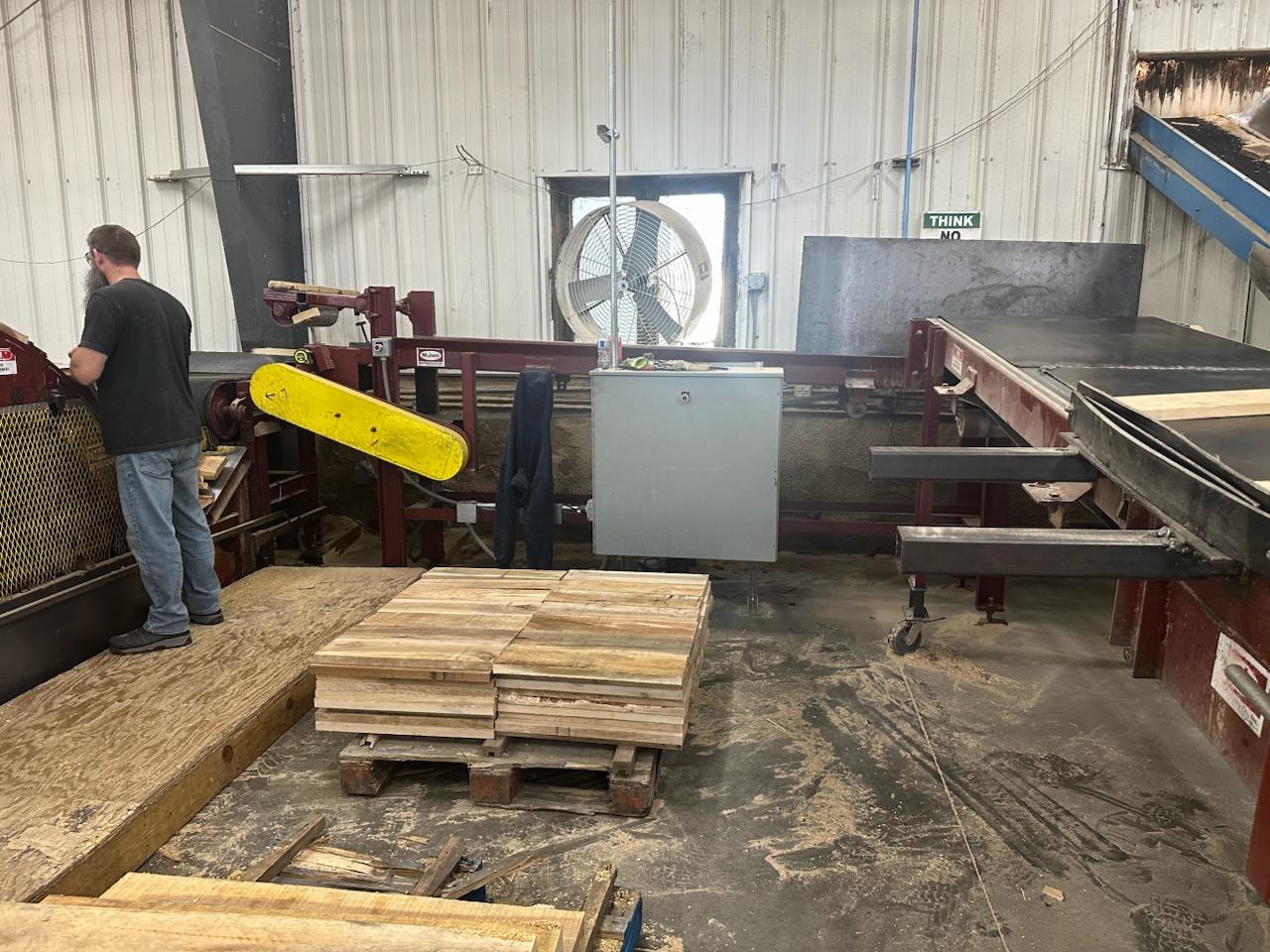

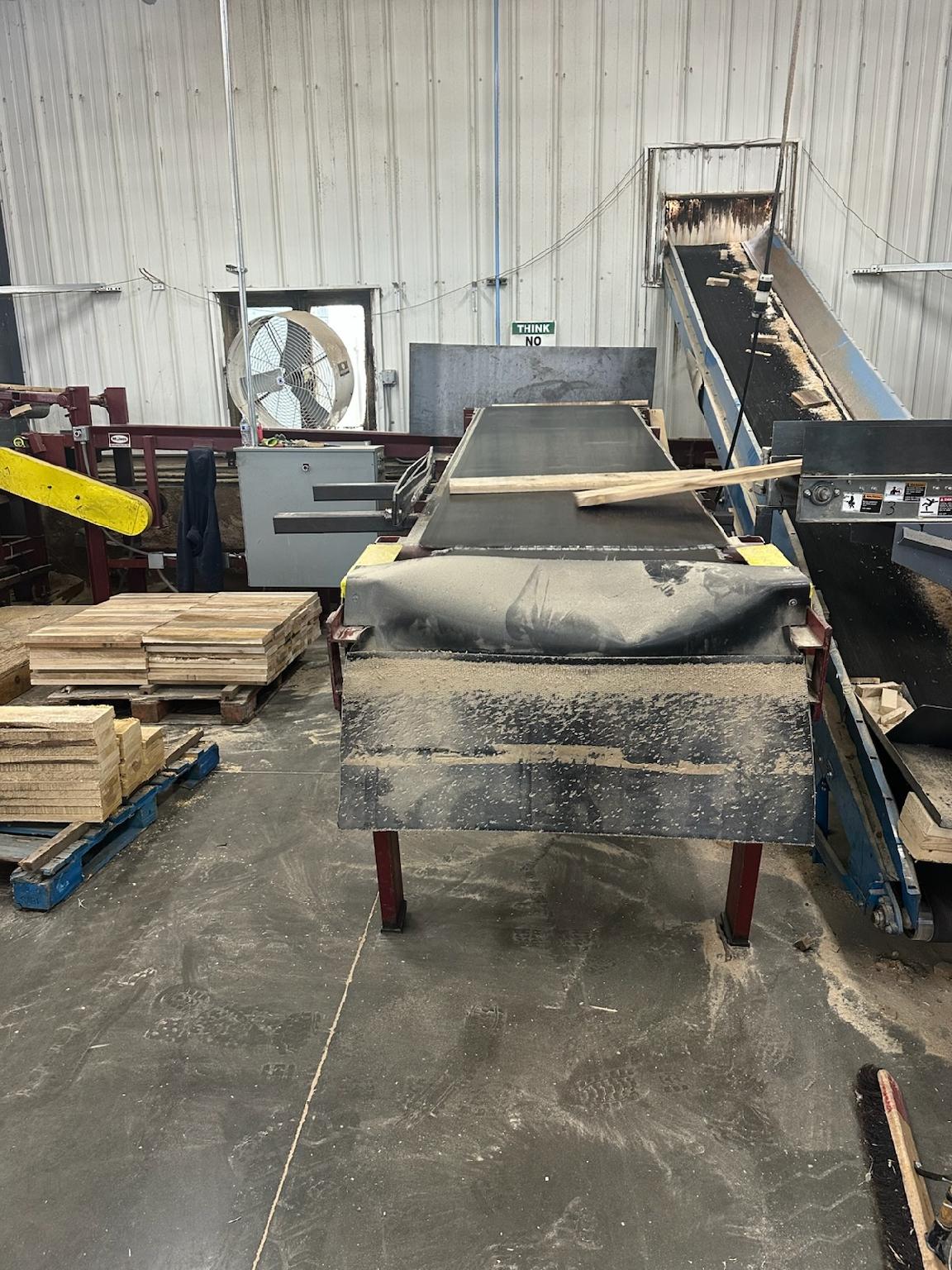

MELLOTT SLIDER BED BELT CONVEYOR (formed steel pan and sides)

LENGTH: 13’ 6”

HEIGHT: 48”BELT: PVC COS 200 x 36” WID

TROUGH: FORMED 1/4” PLATE

SHAFTS:  2-7/16” DIAMETER

PULLEYS: 12” DIAMETER x 38” FACE

DRIVE: SUMITOMO SPEED REDUCER w/ 2 HP TEFC C-FACE MOTOR

CONVEYING SPEED: TO BE DETERMINED

***

MELLOTT SLIDER BED BELT CONVEYOR (formed steel pan and sides) LENGTH: 48

HEIGHT: 34” LOADING HEIGHT, 54” UNLOADING HEIGHT

BELT: PVC COS 200 x 18” WIDE

TROUGH: FORMED 1/4” PLATE

SHAFTS: 2-7/16” DIAMETER

PULLEYS: 12” DIAMETER x 20” FACE

DRIVE: SUMITOMO SPEED REDUCER w/ 2 HP TEFC C-FACE MOTOR

CONVEYING SPEED: TO BE DETERMINED

INCLUDES OVERHEAD PRESS ROLL

***

MELLOTT FOUR (4) CHAIN TYPE 3 BAR UNSCRAMBLER w/ BOARD SINGULATOR

LENGTH: 8’

HEIGHT: 4’-10” TOP OF CHAIN

SPACING: 24”, 8”, 24”

SKIDS: 8” x 4” TUBING WITH 3” SQ. TUBING AND 4” CHANNEL FRAME

CHAIN: 81X WITH LUGS

HEADSHAFT: 1-15/16” DIAMETER

DRIVE: SUMITOMO SPEED REDUCER WITH 3 HP TEFC C-FACE MOTOR

CONVEYING SPEED: 50 LUGS/MIN. @ 60 HZ

***

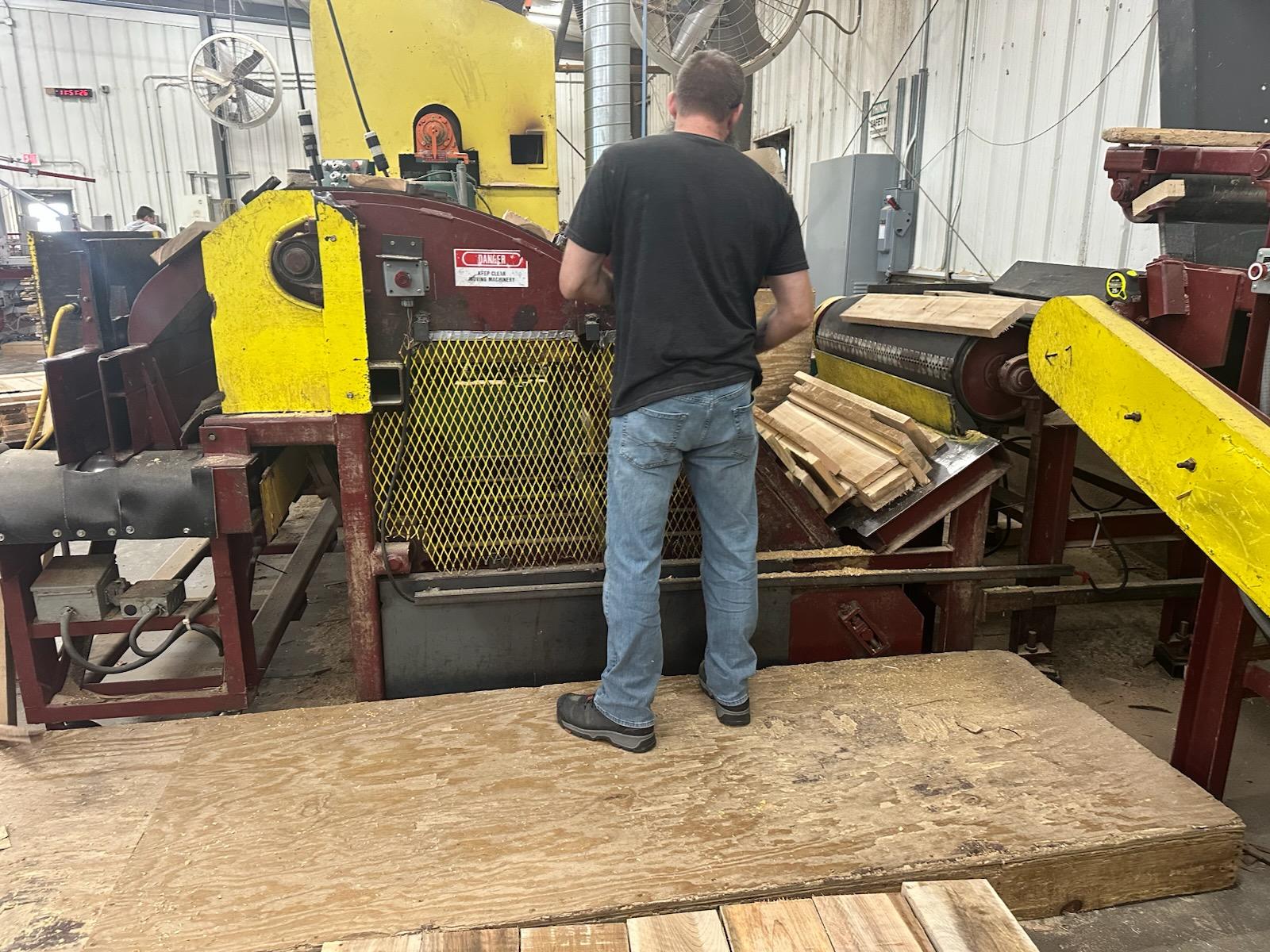

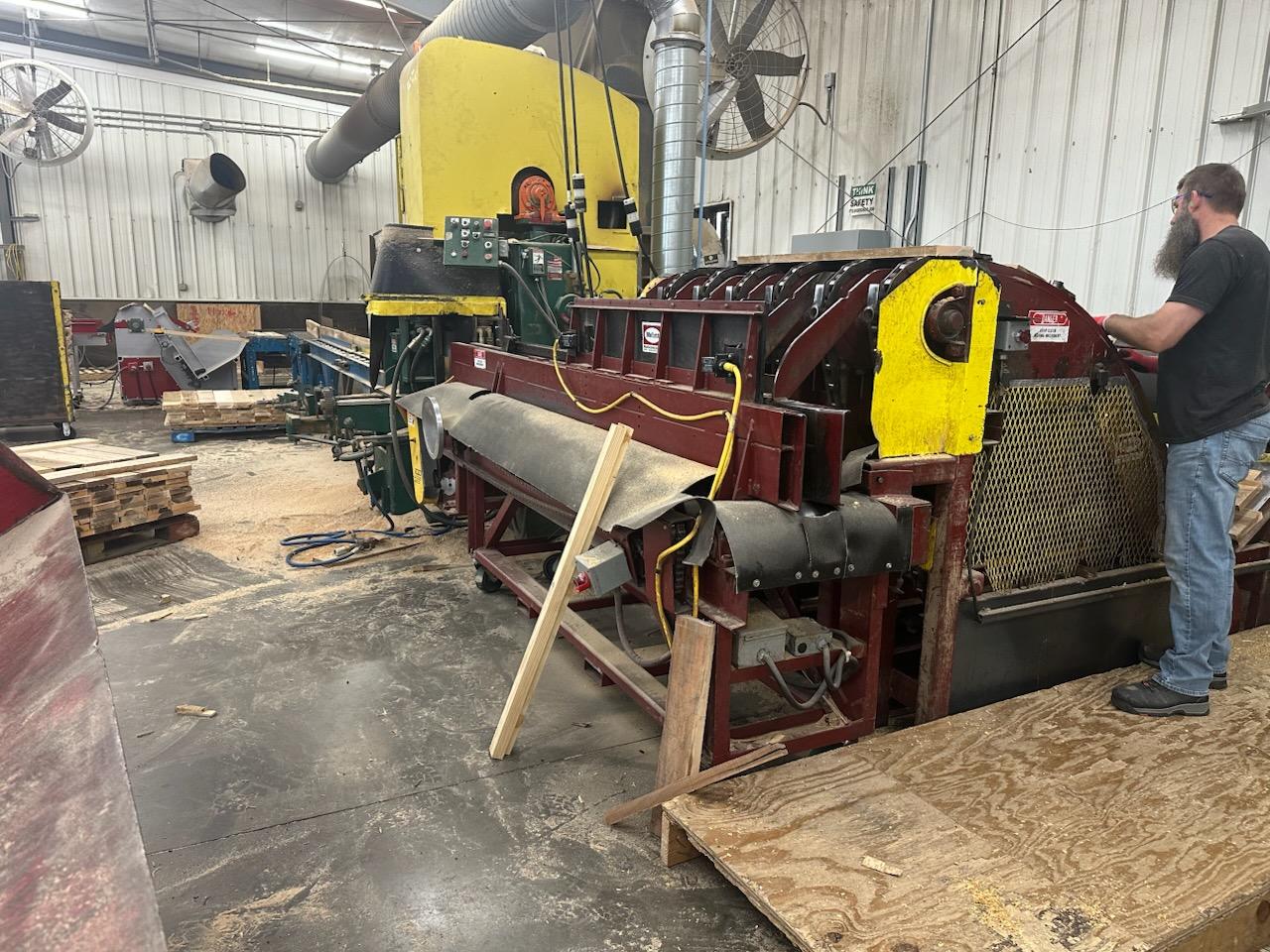

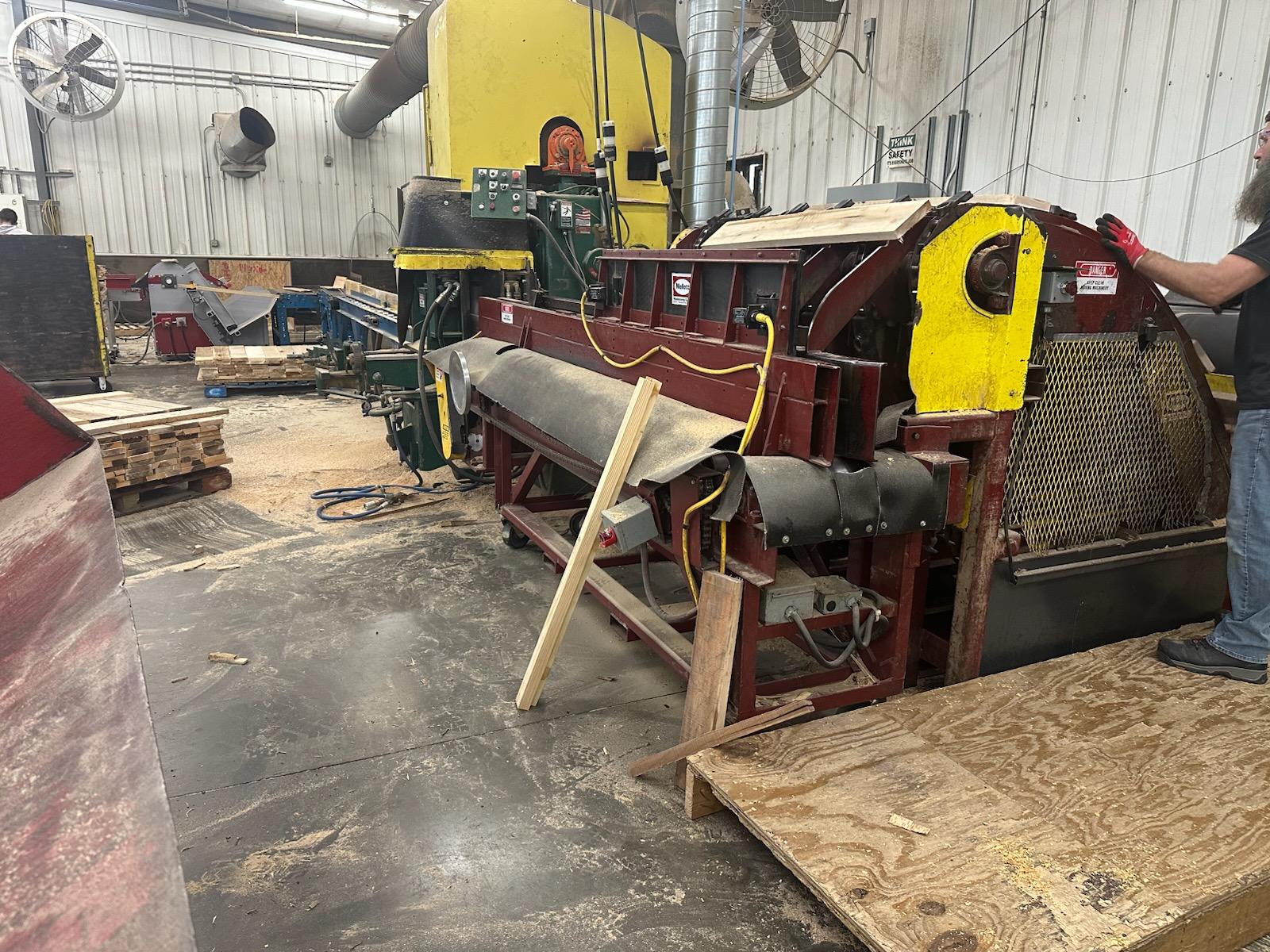

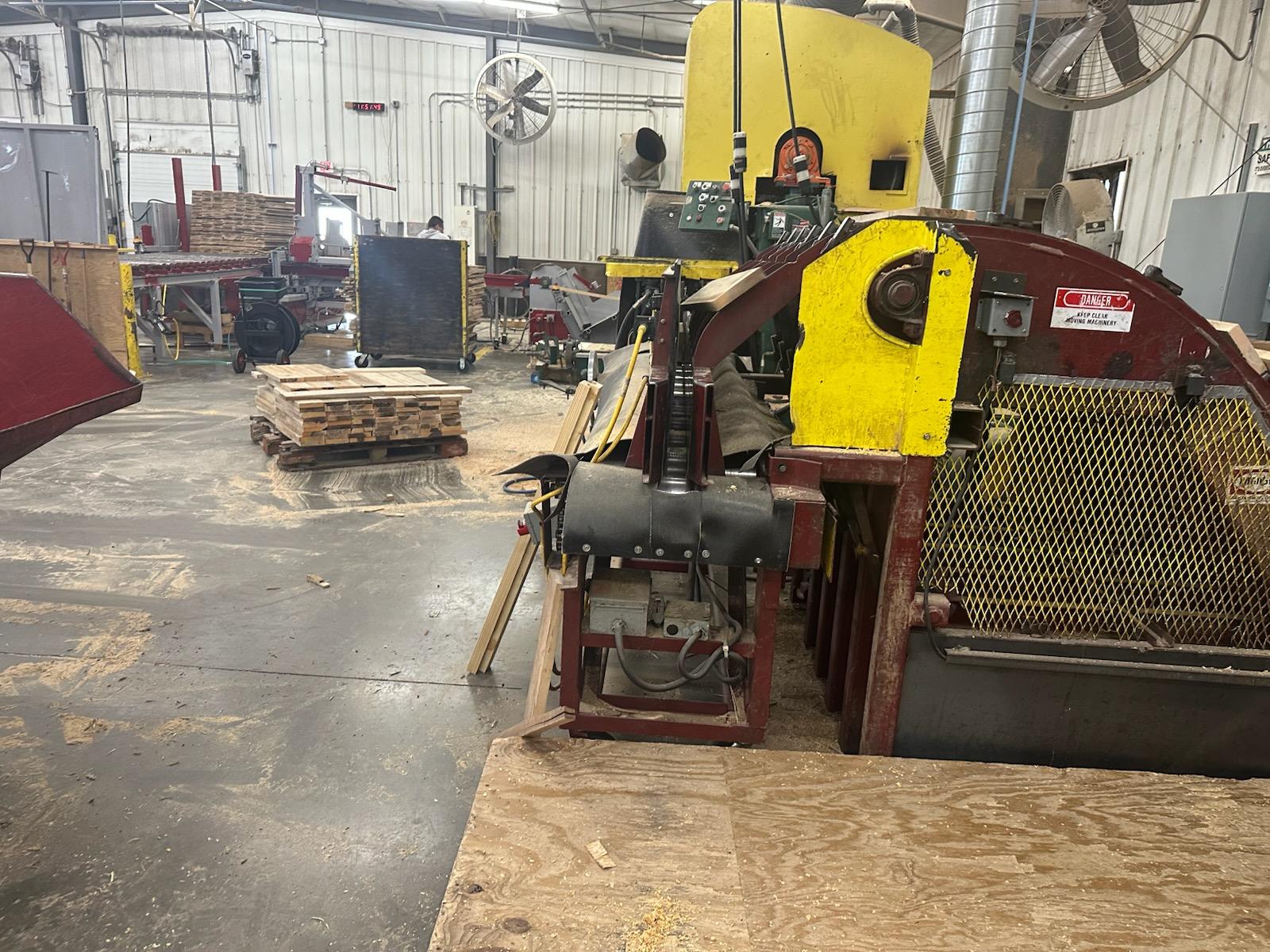

MELLOTT 6” LIVE ROLLCASE (infeed to center split resaw)

LENGTH: 13’ 7”

HEIGHT: 35-1/2”

ROLLS: 6-5/8” O.D. x 24” FACE PIPE MOUNTED ON 10-1/2’ CENTERS, COLEMAN INFEED ROLLS

PULLEYS: 4/3V 4.5 PULLEYS W/SDS 1-7/16” BUSHINGS

BELTS: 2/3V 630 BELTS

TENSIONERS: EFSON LT1001 TENSIONERS, FA3002 FLAT BELT IDLER W/SB0002

MOUNTING ADAPTER AND 1” X 2-1/2” X 3” TAPPED BLOCK

SHAFTS: 1-7/16” DIA.

DRIVE: SUMITOMO SPEED REDUCER w/ 3 HP TEFC C-FACE MOTOR

CONVEYING SPEED: TO BE DETERMINED

INCLUDES TWO (2) SELF CENTERING FENCES (adjustable to match resaw roll spacing)

           AND FOUR (4) 6” DIA. SWIVEL CASTERS W/WRAP AROUND BRAKES AND DURALAST XC COVERS
