Trims a minimum of 18” and a maximum of 16’, up to 4” thick.

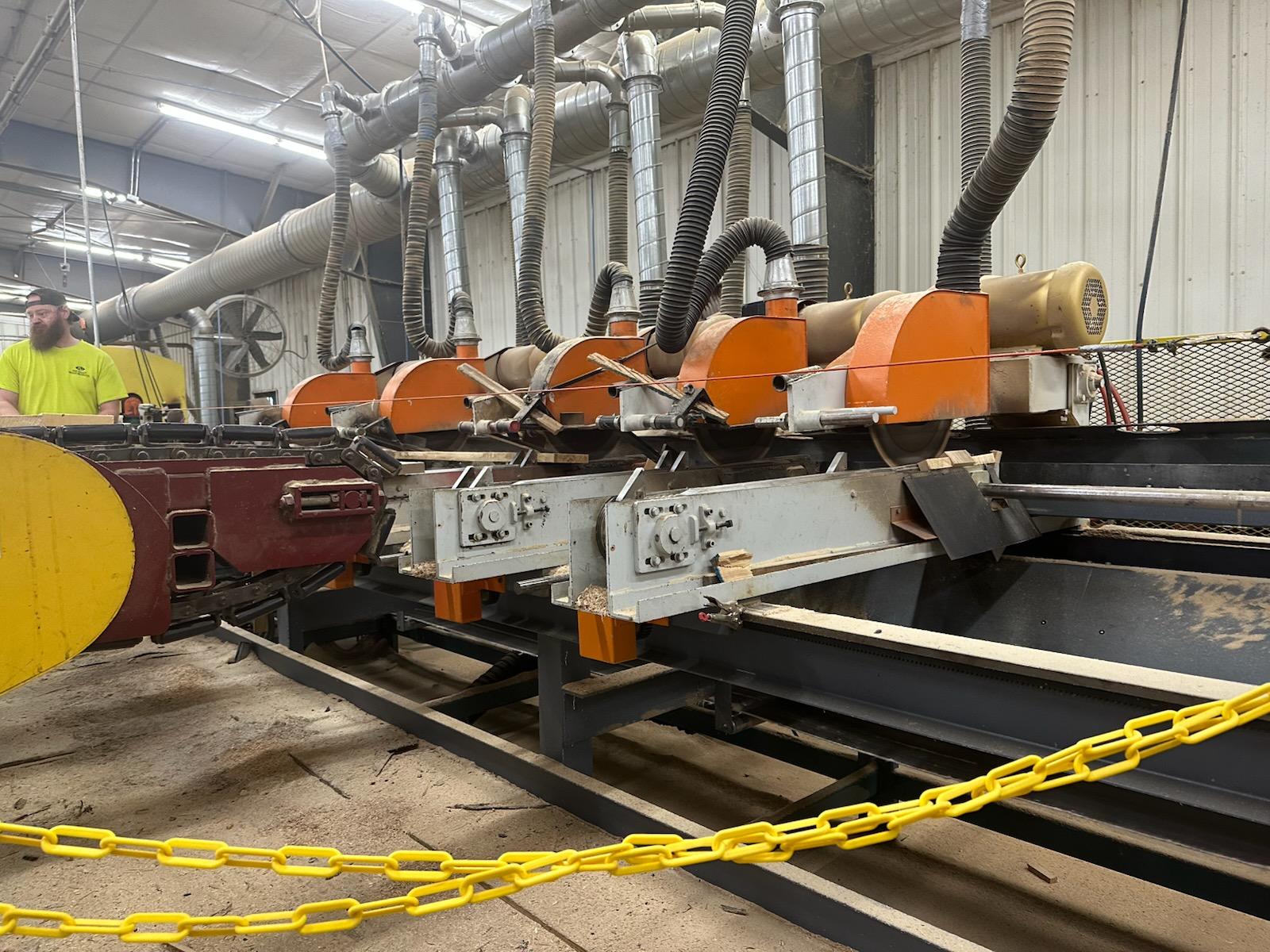

Each saw unit equipped with a 7-1/2 HP, 3 phase, 60 cycle, totally enclosed fan cooled motor.

Without saw blades.

Separate 1-1/2 HP variable feed unit.

Separate 1-1/2 HP conveyor drive unit for lumber conveyor separate 1-1/2HP drive unit for the scrap

Conveyor Reversible; complete with 12” belts.

Lock-up hooks for each saw unit.  Necessary wrenches.

Internal dust hoods for saw units.

Belt guards for saw arbor drives.

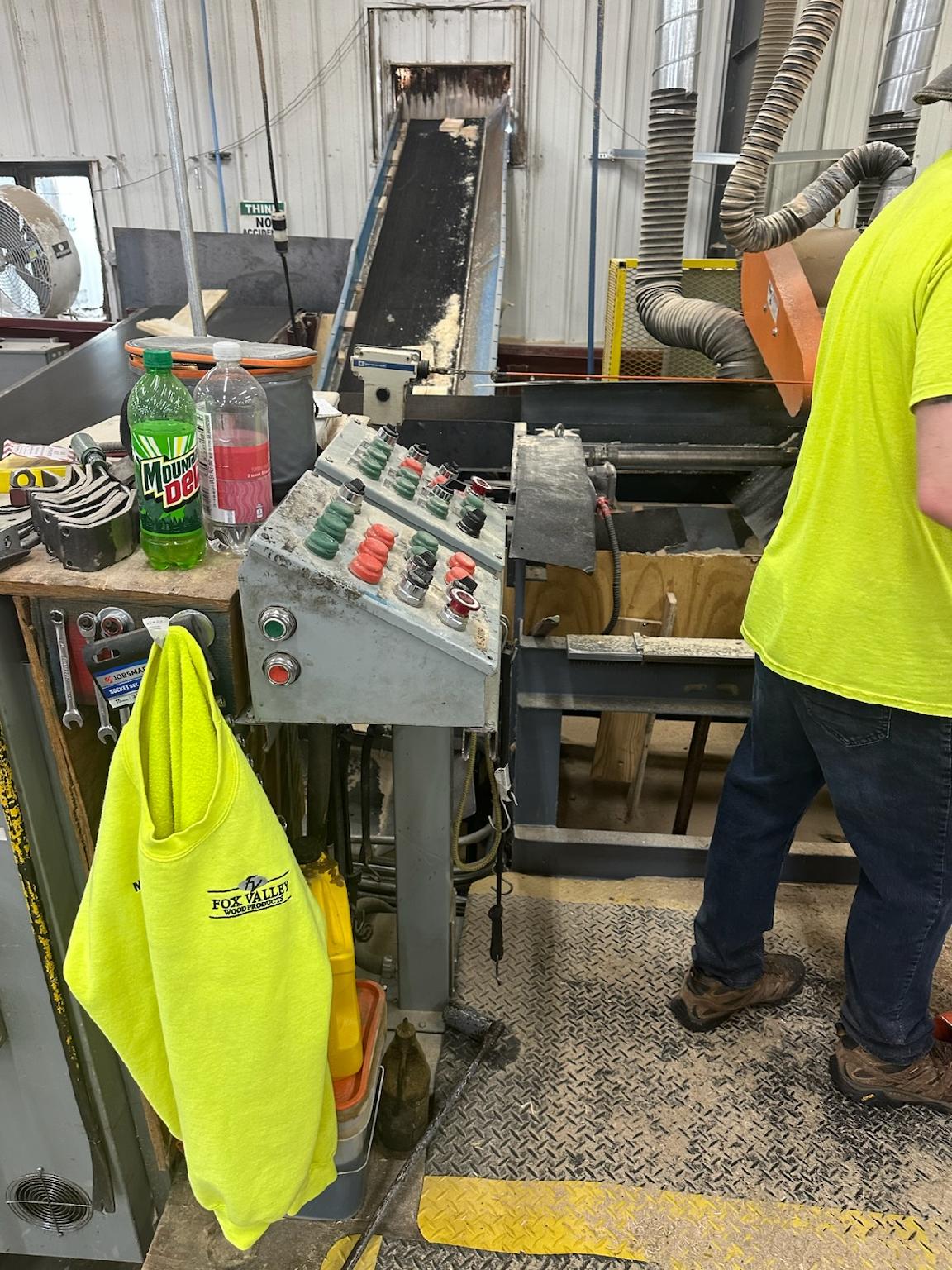

Standard console, 460 volt with seven start push buttons, one master stop button, and 8’            conduit for use at either end of machine. Rear enclosure contains eight starters mounted, wired and ready to run.  Operates with 110 volt control circuit

• Operator position left side
• Scrap discharge to left
• Product discharge to left & right, mainly right

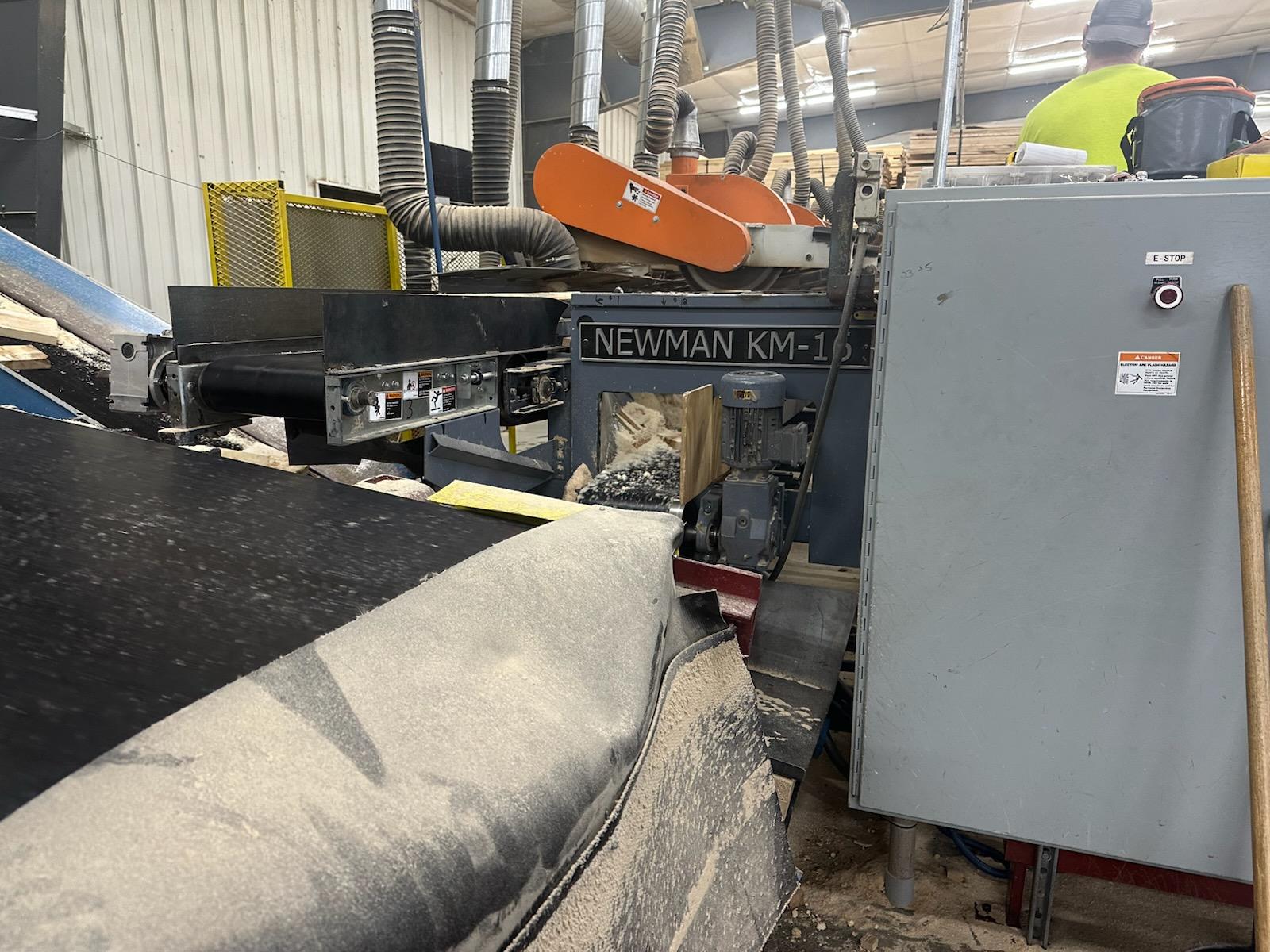

 KM-16 Belt & Chute Extension

• Chute to convey scrap from product feet to waste conveyor w/vibrating device vibrator to turn on & off w/the product belt when discharging to right.

• Belt conveyor that is an extension to the product belt is 2’ long w/an 8” gap between product belt and extension.  The conveyor turns on/off w/product belt when transferring to the left.

• A VFD for variable speed is included w/the product belt. PRICE:                                                                                                           $115,000.00

  F.O.B. WI Shipping Point

** As of 3/4/2026 a new replacement cost is $188,000.00
